Compact PSU

Alimentatore lineare di riferimento con trasformatore toroidale dedicato e filtraggio multi-stadio silenziato, chassis alluminio massivo con controllo risonanze. Compatibile con tutta la gamma Compact e Classic, uscita 12.75V DC/2A con rumore <10μV per prestazioni audio assolute
Pre Linea

Compact PSU

Alimentatore lineare di riferimento con trasformatore toroidale dedicato e filtraggio multi-stadio silenziato, chassis alluminio massivo con controllo risonanze. Compatibile con tutta la gamma Compact e Classic, uscita 12.75V DC/2A con rumore <10μV per prestazioni audio assolute
Pre Linea
PRODOTTO NOVITA'

Compact PSU

Pre Linea

From the very first sketch, the Compact PSU was imagined as more than a power supply — it was designed as the silent foundation of your musical journey. Every element, inside and out, was crafted to deliver not just performance, but an experience.

Pure, Linear Power Flow – Hear your music exactly as it was intended, free from distortion or compromise. A Transformer with Soul – Custom-built for Nagra, our toroidal transformer delivers power with precision and warmth, giving life to every note. Multi-Stage Silent Filtering – Eliminates interference and guarantees a clean, silent energy flow to your components.


Precision-Machined Aluminum Chassis – Provides resonance control and vibration resistance, combining durability with elegance.


Region-Specific Transformer Options – Dedicated versions for European and US mains voltage for optimal performance everywhere. Generous 2 A Output Power – Plenty of headroom to unleash the full potential of your system.

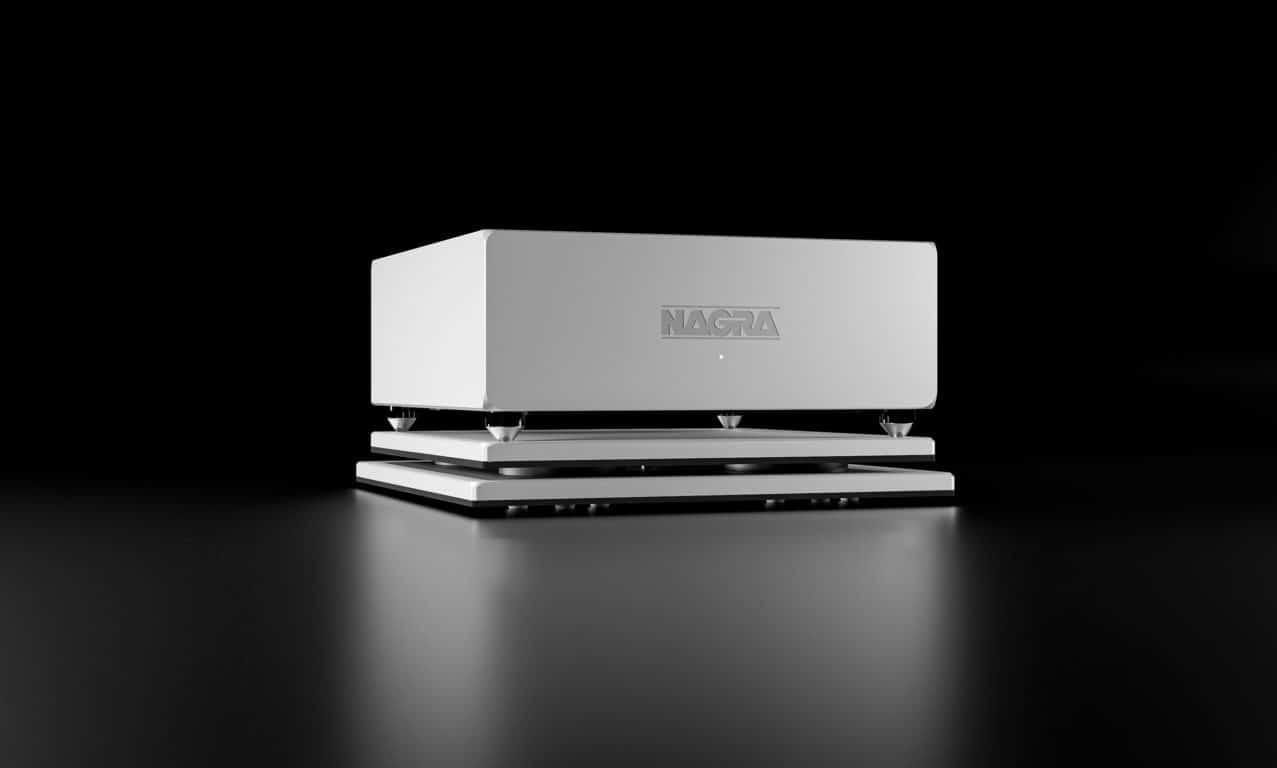

Optional Compact VFS Upgrade – Add Nagra’s vibration isolation platform for even greater clarity, focus, and musical immersion.
This meticulous engineering allows your Nagra system to reveal its full musicality—unlocking a more natural, lifelike, and immersive listening experience.

Scheda Tecnica

TECHNICAL SPECIFICATIONS

GENERAL
Compatibility:
VPS, Jazz & Melody preamplifiers; Classic DAC, DAC II, HD DAC,
Tube DAC; Classic PREAMP, Classic PHONO; Nagra CD players; Compact Phono,
Compact Streamer
Output:
1× 12.75 V DC / 2 A
Connector:
DC Jack 2.5 mm
Noise:
≤ 10 μV (10 Hz – 100 kHz, full load)

Equivalent to below –110 dBV across the
audio and ultrasonic range
Mains power:
100, 115, 120, 230, 240 V~ device versions

±10% / 50-60 Hz
Mains fuse:
T 1.6A L for 100-127 V~

T 800mA L for 230-240 V~
FST 5×20 mm 250 V
Power consumption:
Maximum 60 W (AC line input)
Operating temperature:
+15°C to +35°C / +59°F to +95°F

Moderate climate
Operating environment:
Indoor only  /  IP30
Dimensions (L × W × H):
160 × 191 × 61 mm (6.3 × 7.5 × 2.4 in)
Weight:
3.5 kg (7.7 lb)
