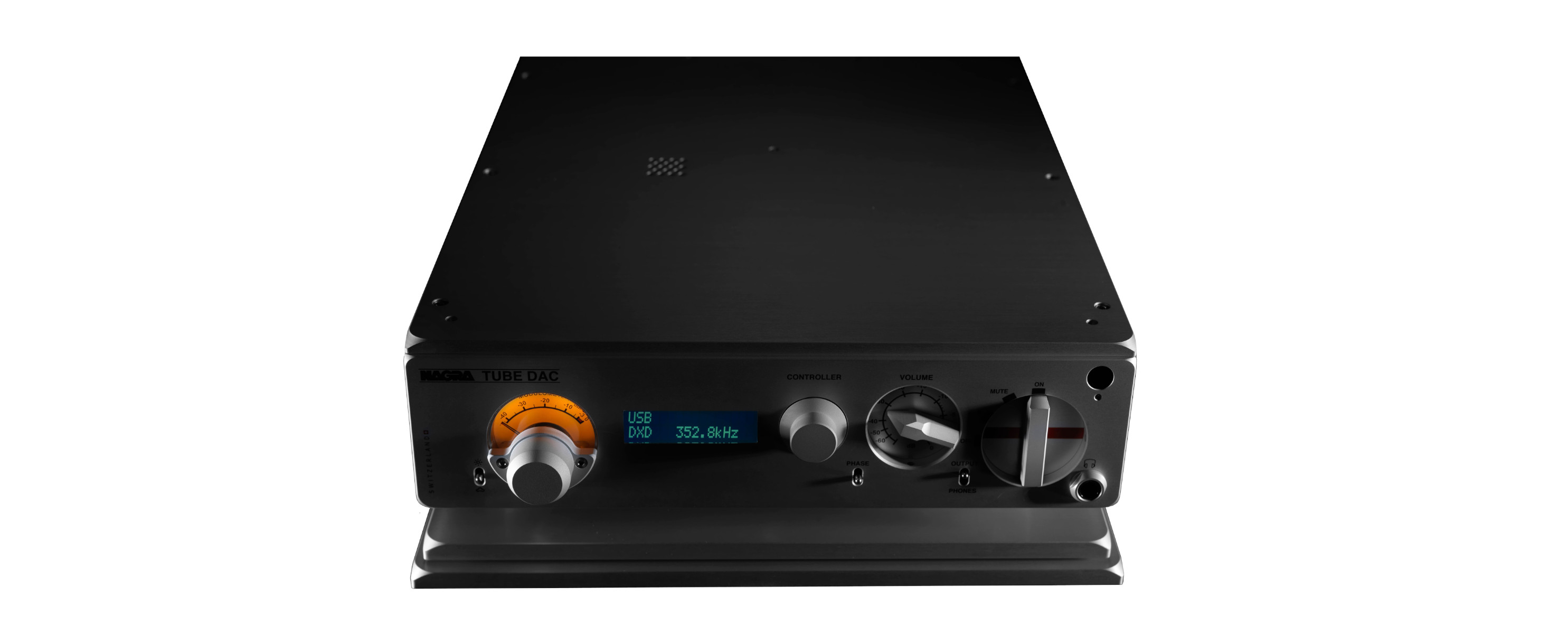

TUBE DAC
DAC HD 24bit/384kHz, DSD&DSD 4X, USB, coax,xlr,toslink
DAC
The TUBE DAC is designed to convert a digital signal to analog with total integrity and without introducing the slightest impurity or coloration to the original sound. This objective has been totally achieved, and sound has never reached such a true level of definition.
The effort put into the design and exactitude of the Nagra TUBE DAC was exceptional from every perspective. Its circuits, which adopt the DSD 4x (Direct Stream Digital 256) run at the highest resolution available today, 256 times that of a standard CD and four times that of SACD.



The analog section was also the object of a no-holds-barred approach. Thanks to the quality of the signals supplied from the digital conversion circuits, the traditional steep slope filters have been totally eliminated. The consequence of this is the preservation of transients and harmonics, enabling the music to present an exceptionally natural sound. Some of the critical design elements include ultra-high-performance drivers, hand-wound transformers and a tube-driven output stage.



There are 25 precision ultra-low-noise internal power supplies that drive the unit, giving each element its own independent and pure supply source. The Nagra TUBE DAC converter needs two external power supplies, one for the digital section and the other for the analog, keeping the two sections independently isolated. It should be paired up with the Nagra CLASSIC PSU unit to attain its ultimate performance although it is also compatible with the previous generation power supply, the Nagra MPS.



The TUBE DAC is equipped with extensive connection possibilities, allowing integration in all types of domestic and professional systems. It is particularly suited to computer environments thanks to its new generation audio USB input, through which it receives signals up to the DSD 256 format from a PC or MAC

TECHNICAL SPECIFICATION

ELECTRONICS

Internal processing: 11.2 MHz, 72 Bits
Compatible digital formats: PCM 24 bits up to 384 kHz, DXD, DSD 256
Bandwidth: 5Hz to 40 kHz (+0 – 3dB)
Noise level: -128 dBr (linear)
Interchannel phase: <0.5° at 20 kHz
Distortion: < 0.02% (at -20dBFS)

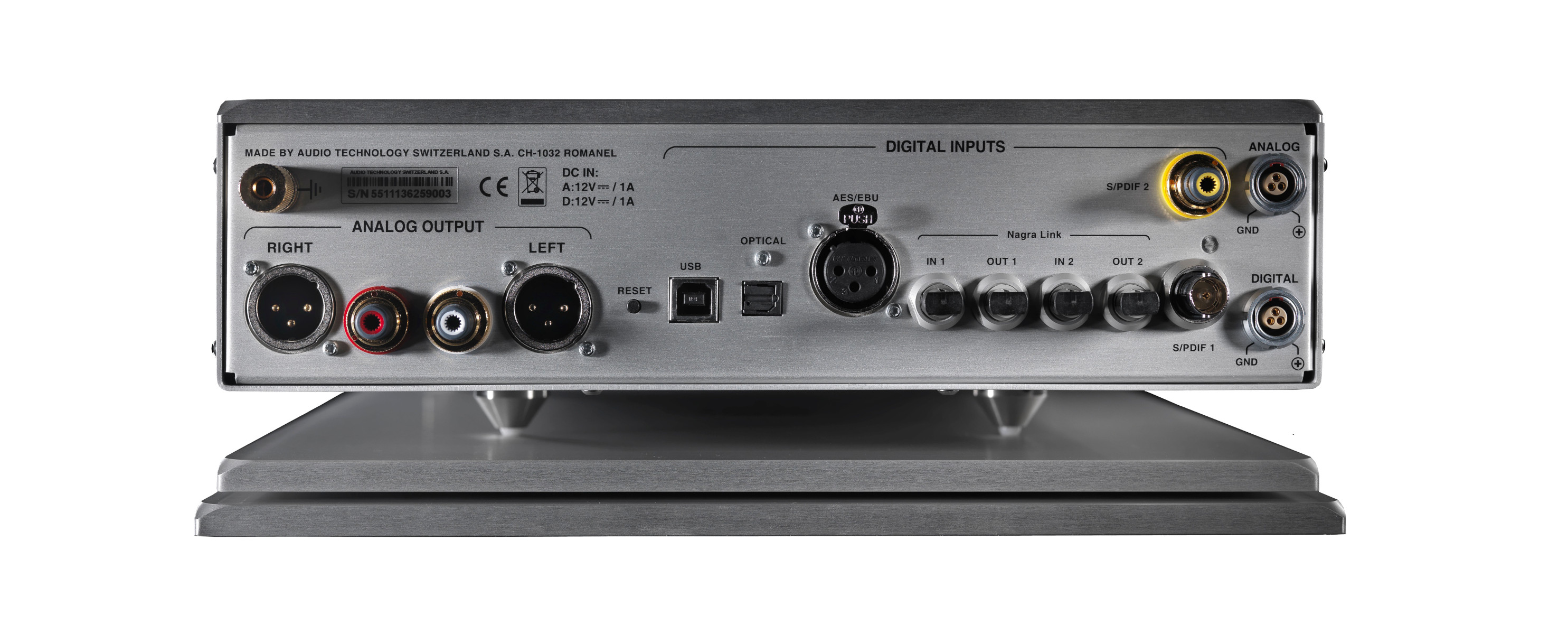

CONNECTIONS

Digital inputs: 2 x S/DIF, 1 AES/EBU, 1 Optical, 1 Audio USB (mode 2), 1 x I2S (Nagra format)
Outputs: 1 stereo on RCA connectors, 1 stereo XLR
(Symmetrical on transformers available as an option)



GENERAL

Dimensions: 280 x 350 x 76mm (12 x 13.7 x 3 inches)



POWER SUPPLY

Compatible with Nagra PSU (recommended for maximum performance) and Nagra MPS (compatible):
